EDGE PULLS

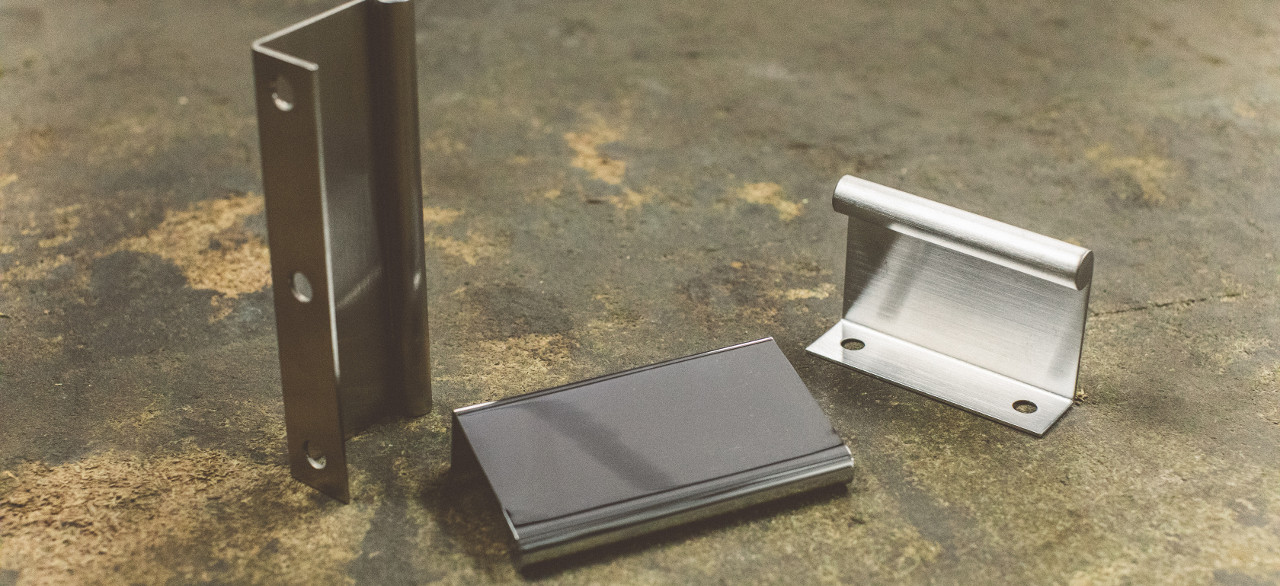

Tydix Edge Pulls are handmade (not extrusions), fabricated to your design concepts, made to order to any door thickness, overlay or clearance. Meets ADA requirements.

The material used in Tydix Edge Pulls is solid brass or bronze, and any standard hardware finish except aluminum or stainless steel, are available.

Fabrication Specifications Include:

  • Desired roll diameter (1/4”, 5/16”, 3/8”, or 1/2")
  • Desired roll length (any dimension 1-1/4” to 24”)

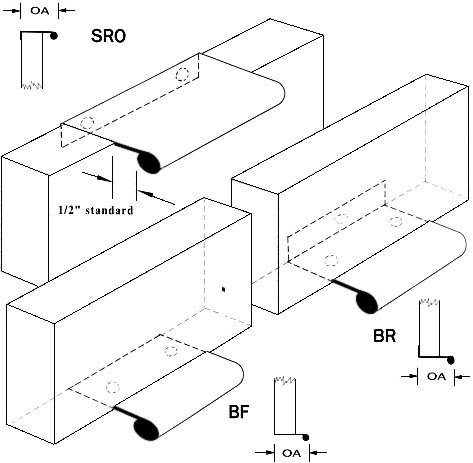

  • Desired style (SF, SAR, SRO, Etc.)
  • Desired finish (see finish options below)
  • RC for rounded roll ends
  • (Examples: BR 1/4” x 1-1/2, US 26, RC-SR 5/16 x 3, US 10B, DAF 3/8 x 4, US 10)
To order furnish the above information plus the following:
  • Thickness of basic door or drawer (screws will be located accordingly, or per a provided drawing)
  • Thickness of any overlay (mirror, panel, etc.)
  • Clearance desired if other than standard (1/2”)
  • Overall dimension (OA) if important. (OA = door thickness + overlays + clearance + roll diameter)
  • Angle of door bevel (types SAR and SAF) or other angles required (standard is 1/8” in 2”)
  • Finish (see below)
Note: A simple sketch can be invaluable.
Tydix edge pull finishes:
SYMBOL
Polished BrassUS 3
Polished Brass (no lacquer)US 3-NL
Satin BrassUS 4
Polished BronzeUS 9
Satin BronzeUS 10
Oil-Rubbed BronzeUS10B
Polished NickelUS 14
Satin NickelUS 15
Polished ChromeUS 26
Satin ChromeUS 26D
Antique NickelSpecify
Antique BronzeSpecify
Statuary BronzeSpecify
Satin blackUS19
Polished black ChromeSpecify
Antique BrassSpecify
GoldSpecify
For Pricing & Lead-time:

Call 805.771 9067
Or email tydix@tydix.com

Provide fabrication specifications above at time of quote

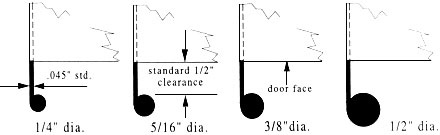

ROLL DIAMETERS

edge
edge
bottom-diameters
edge
